Bootloader for Arduino Mega2560

The standard Arduino bootloader uses STK500 version 1 protocol. This protocol works fine up to chips that have 128 bytes of Flash. After that it does not understand the extended addressing. Fortunately there is STK500v2 protcol that can handle larger memory footprints.

I started with the wiring project stk500 v2 bootloader and modified it to work with the 2560.

This bootloader has been tested on

CPU BOARD Web site

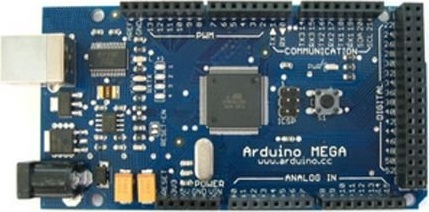

atmega2560 Arduino mega
atmega1280 Arduino mega
atmega128 Amber128 http://www.soc-robotics.com/
atmega32 Penguino-AVR http://www.icy.com.au/
atmega2561 Boston Android http://www.bostonandroid.com/EVAL-USB-2561.html

It should be able to be made to work with any larger atmega cpu by modifiying the make file which is included with the source.

How to use the 2560 and others in Arduino

Full source and make files can be found here stk500v2bootloader.zip

The current bootloader in the Arduino mega board has a little known fact that it has a monitor built in. It is not very usable in that it has to be done with a program and cannot be used via a terminal because it uses binary commands. In order to access this "monitor" you have to open the serial port at 57600 baud and type "!!!" before it jumps to the main program.

I have done the same thing in the new bootloader but it is a command prompt to allow you to look at the hardware and memory. To access this monitor open up a serial port at 115200 and type "!!!" within 3 seconds.

The commands are

This bootloader takes 8K memory and I have used almost every available byte. The monitor can be turned of but this was designed for the atmega2560, atmega1280, and atmega128, all of which have plenty of flash memory space.

The monitor is VERY useful to test hardware. For example you can blink any port, you can look at flash, ram and eeprom.

Sample output



Arduino Bootloader>? CPU stats
Arduino explorer stk500V2 by MLS
Compiled on  = Aug  2 2010
CPU Type     = ATmega2560
__AVR_ARCH__ = 6
GCC Version  = 4.3.3
AVR LibC Ver = 1.6.7
CPU signature= 1E9801
Low fuse     = FF
High fuse    = D8
Ext fuse     = FD
Lock fuse    = FF
Arduino Bootloader>

ATmega2560
V#   ADDR   op code     instruction addr   Interrupt
01 - 0000 = C5 95 00 00 rjmp  0595 >000B2A RESET
02 - 0002 = C5 C0 00 00 rjmp  05C0 >000B84 INT0
03 - 0004 = C5 BE 00 00 rjmp  05BE >000B84 INT1
04 - 0006 = C5 BC 00 00 rjmp  05BC >000B84 INT2
05 - 0008 = C5 BA 00 00 rjmp  05BA >000B84 INT3
06 - 000A = C5 B8 00 00 rjmp  05B8 >000B84 INT4
07 - 000C = C5 B6 00 00 rjmp  05B6 >000B84 INT5
08 - 000E = C5 B4 00 00 rjmp  05B4 >000B84 INT6
09 - 0010 = C5 B2 00 00 rjmp  05B2 >000B84 INT7
10 - 0012 = C5 B0 00 00 rjmp  05B0 >000B84 PCINT0
11 - 0014 = C5 AE 00 00 rjmp  05AE >000B84 PCINT1
12 - 0016 = C5 AC 00 00 rjmp  05AC >000B84 PCINT2
13 - 0018 = C5 AA 00 00 rjmp  05AA >000B84 WDT
14 - 001A = C5 A8 00 00 rjmp  05A8 >000B84 TIMER2 COMPA
15 - 001C = C5 A6 00 00 rjmp  05A6 >000B84 TIMER2 COMPB
16 - 001E = C5 A4 00 00 rjmp  05A4 >000B84 TIMER2 OVF
17 - 0020 = C5 A2 00 00 rjmp  05A2 >000B84 TIMER1 CAPT
18 - 0022 = C5 A0 00 00 rjmp  05A0 >000B84 TIMER1 COMPA
19 - 0024 = C5 9E 00 00 rjmp  059E >000B84 TIMER1 COMPB
20 - 0026 = C5 9C 00 00 rjmp  059C >000B84 TIMER1 COMPC
21 - 0028 = C5 9A 00 00 rjmp  059A >000B84 TIMER1 OVF

Arduino Bootloader>L List available Ports
PORTA
PORTB
PORTC
PORTD
PORTE
PORTF
PORTG
PORTH
PORTJ
PORTK
PORTL
Arduino Bootloader>

Arduino Bootloader>R Dump RAM
0000 - 00 00 20 02 87 20 10 10 08 00 00 00 00 00 0E 00 .. .. ..........
0010 - 00 00 00 E3 00 00 20 00 2E 10 01 02 86 20 1E 00 ...... ...... ..
0020 - 00 00 00 80 80 80 00 00 00 07 00 00 03 00 00 00 ................
0030 - 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
0040 - 00 FF 00 00 00 00 00 00 00 00 00 00 00 00 00 62 ...............b
0050 - 30 00 62 00 07 00 62 00 62 62 62 07 01 86 20 02 0.b...b.bbb... .
0060 - 00 00 62 62 00 00 88 62 00 00 00 00 00 00 00 00 ..bb...b........
0070 - 00 00 00 00 00 00 62 62 00 00 00 00 00 00 00 00 ......bb........
0080 - 00 00 00 62 00 00 00 00 00 00 00 00 00 00 62 62 ...b..........bb
0090 - 00 00 00 62 00 00 00 00 00 00 00 00 00 00 62 62 ...b..........bb
00A0 - 00 00 00 62 00 00 00 00 00 00 00 00 00 00 62 62 ...b..........bb
00B0 - 00 00 00 00 00 62 00 62 00 F8 FE FF 00 00 62 62 .....b.b......bb
00C0 - 22 18 06 62 10 00 6C 62 20 00 06 62 00 00 00 62 "..b..lb ..b...b
00D0 - 20 00 06 62 00 00 00 62 62 62 62 62 62 62 62 62  ..b...bbbbbbbbb
00E0 - 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 bbbbbbbbbbbbbbbb
00F0 - 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 bbbbbbbbbbbbbbbb
Arduino Bootloader>
